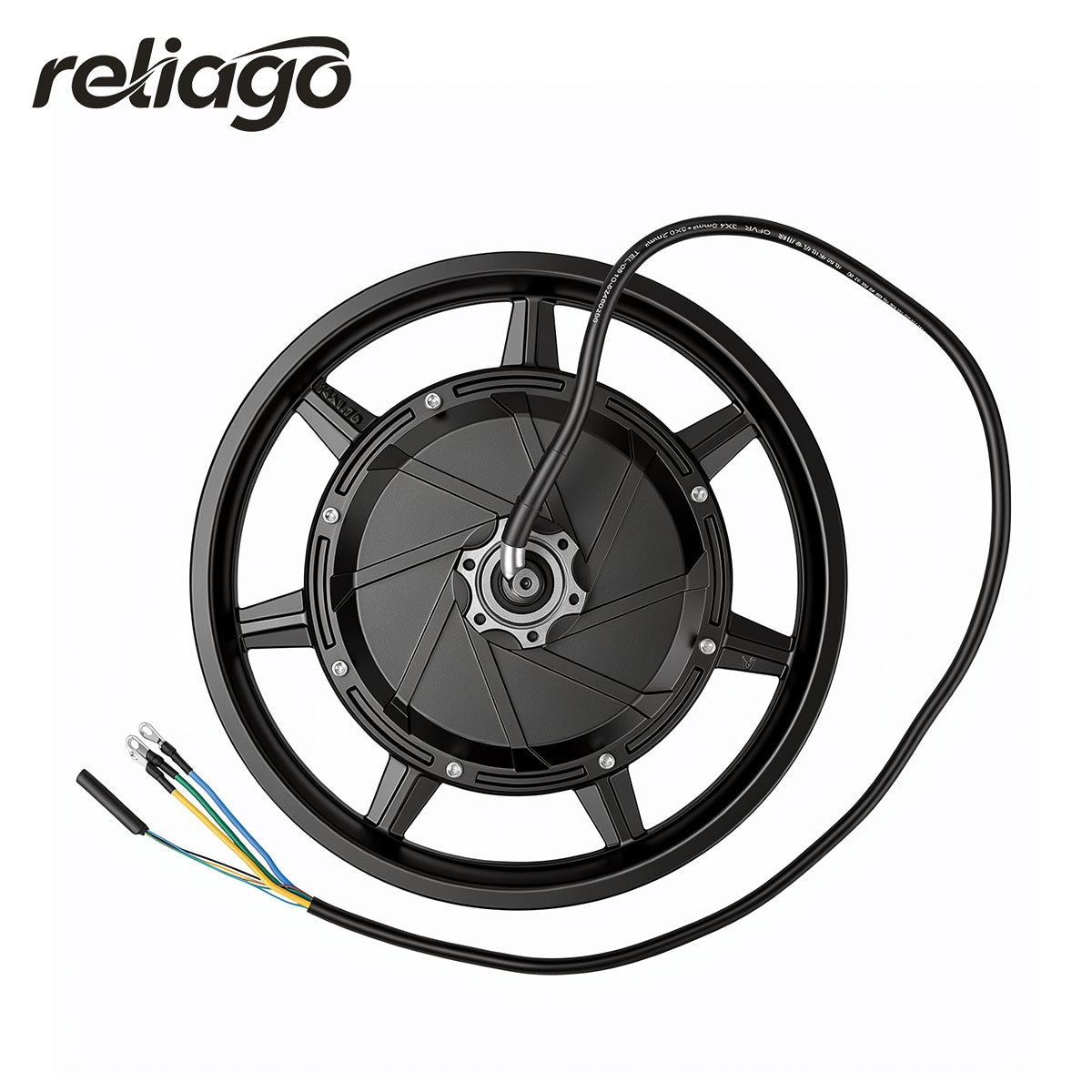

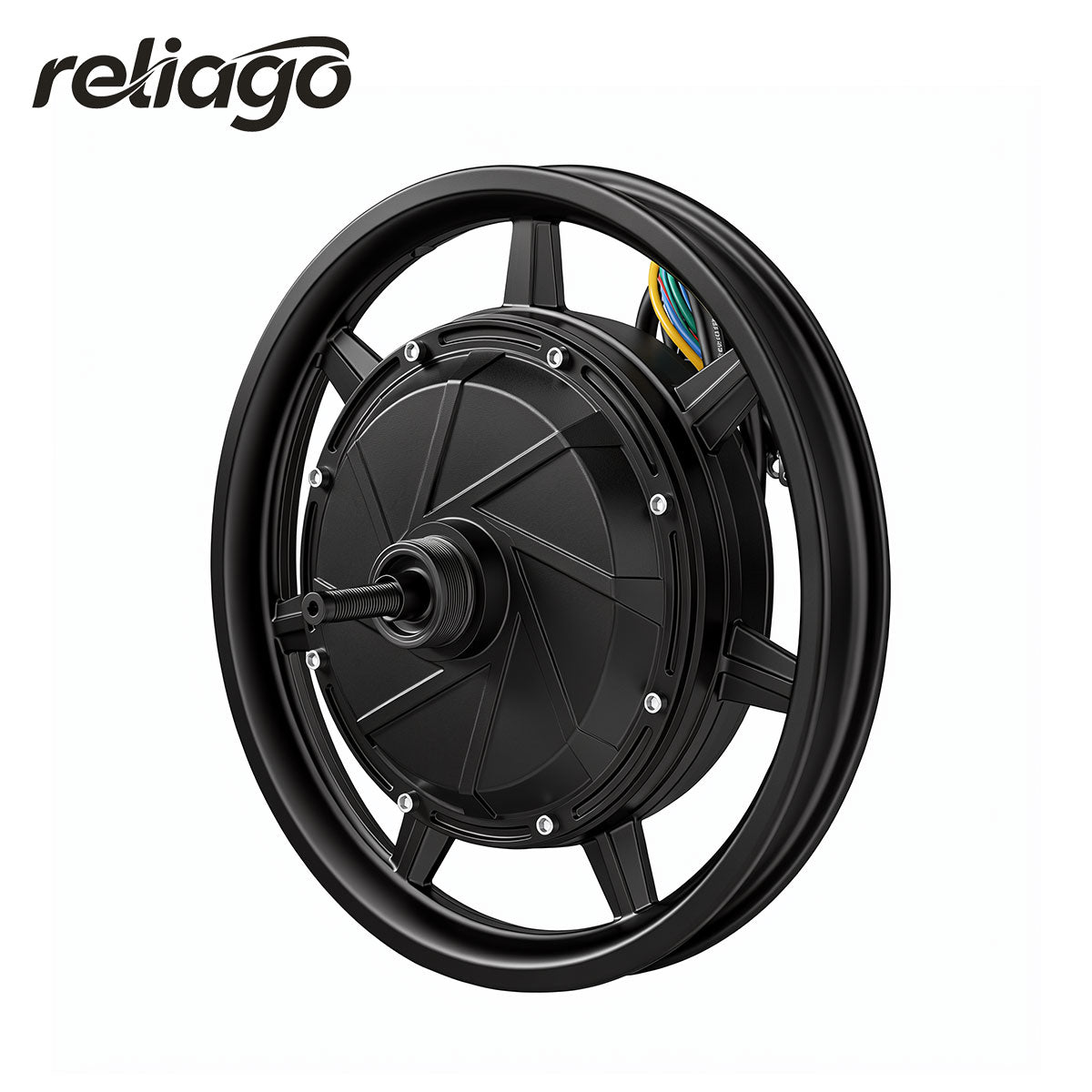

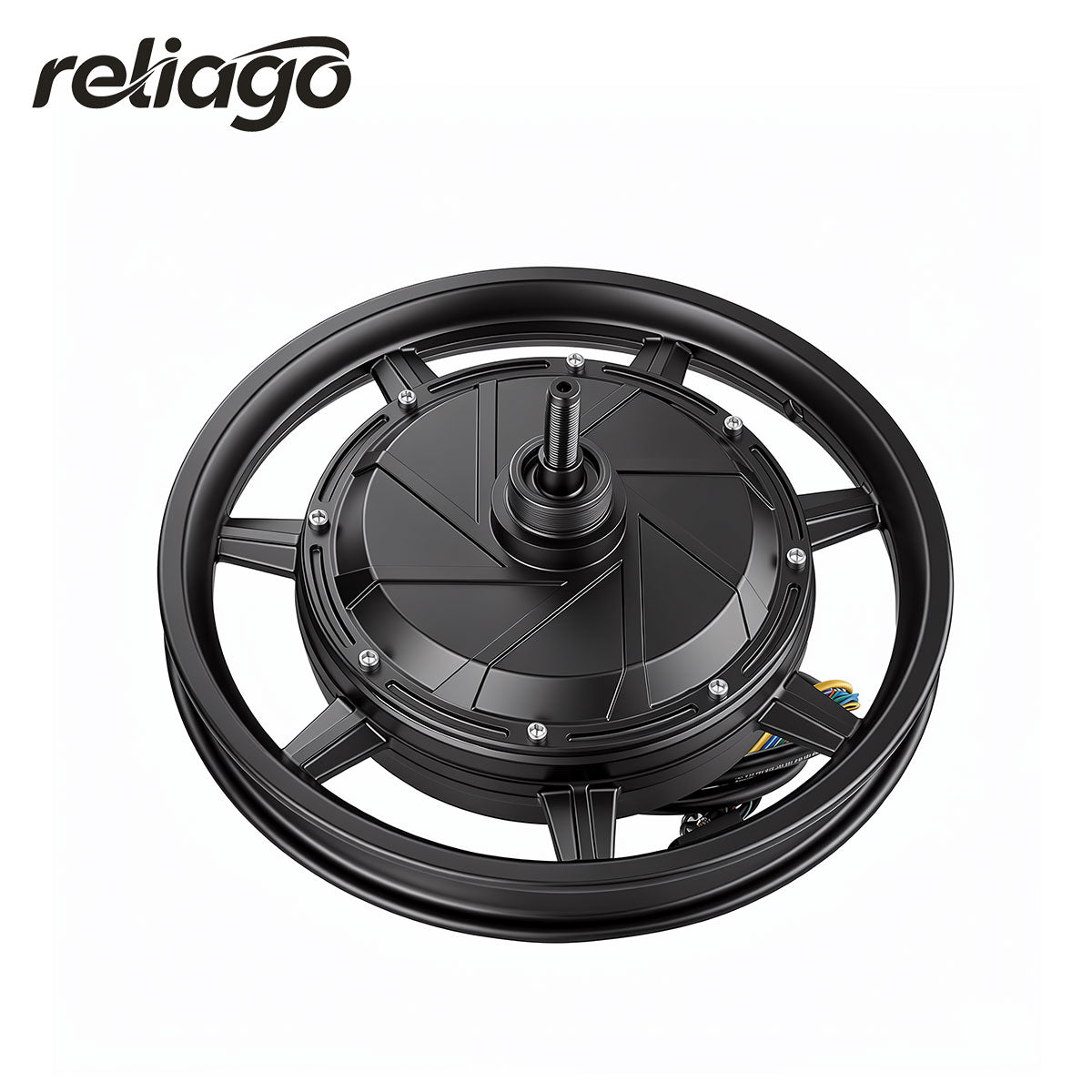

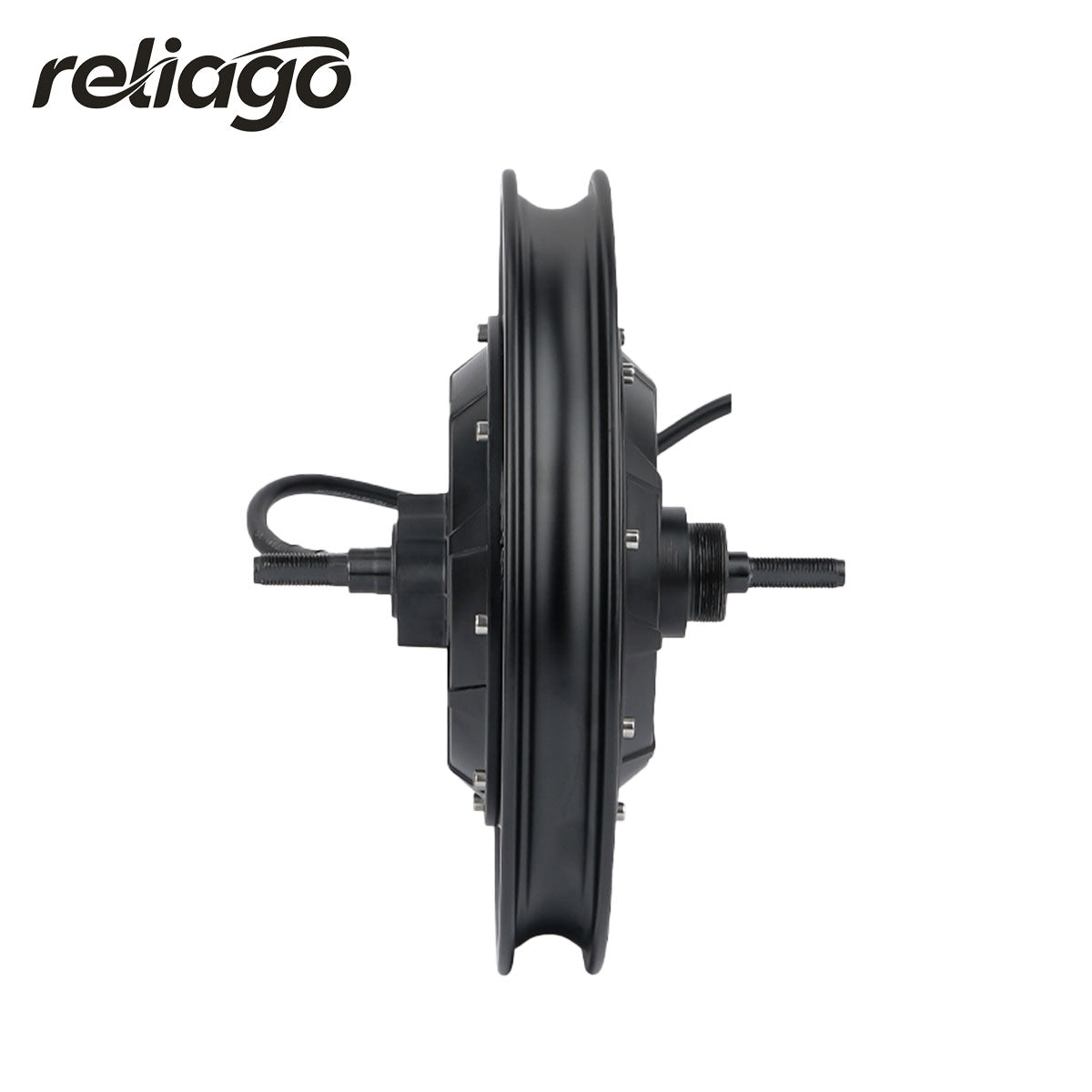

36V 350W 14" Rear Hub Motor for DYU D3F E-Bike
Upgrade or replace the rear drive system of your compatible DYU D3F electric bike with this 36V 350W brushless rear hub motor.
Designed around a 14" × 1.75" wheel/tire specification, this rear hub motor features an integrated Hall sensor, disc brake mounting, left-side cable outlet, and a black matte finish.
The motor is supplied with detailed connector and mounting configurations designed for the specified D3F application.
It is suitable for e-bike motor replacement, repair, maintenance, and restoration when the original motor specifications match.
| Specification Item | Detailed Parameters |
| Product Name | E-Bike Brushless Hub Motor |
| Brand | Reliago |
| Model Number | D3F-MTR |
| Rated Voltage | 36V |
| Rated Power | 350W |
| Wheel / Tire Size | 14" × 1.75" |
| Motor Type | Brushless Hub Motor |
| Hall Sensor | Included |
| Cable Outlet Position | Left Outlet |
| Phase Wires | Yellow / Blue / Green Bullet Connectors |
| Phase Wire Feature | Extra Solder |
| Hall Sensor Connector | SM-5Y |
| Hall Connector Treatment | Glued |
| Brake Mount | Disc Brake Mount |
| Freewheel Seat | Black Freewheel Seat |
| Freewheel | Requires Assembly of Provided Freewheel |
| Through-Hole | 5.2mm |
| Hole Position | Rib Opposite Valve Hole |
| Nuts | Epoxy CP Round Anti-Slip Nuts |
| Frame Finish | Matte Black |
| Reflective Detail | Red Reflective Stripe |
| Compatible Bike Types | D3F E-Bike |
The motor is rated at 36V and 350W, providing a replacement solution for compatible electric bike rear wheel drive systems.
The motor includes a Hall sensor for use with compatible brushless motor control systems.
The Hall sensor uses an SM-5Y connector, and the connector treatment is glued.
The motor features a disc brake mount, making it suitable for compatible rear wheel assemblies using a disc brake configuration.

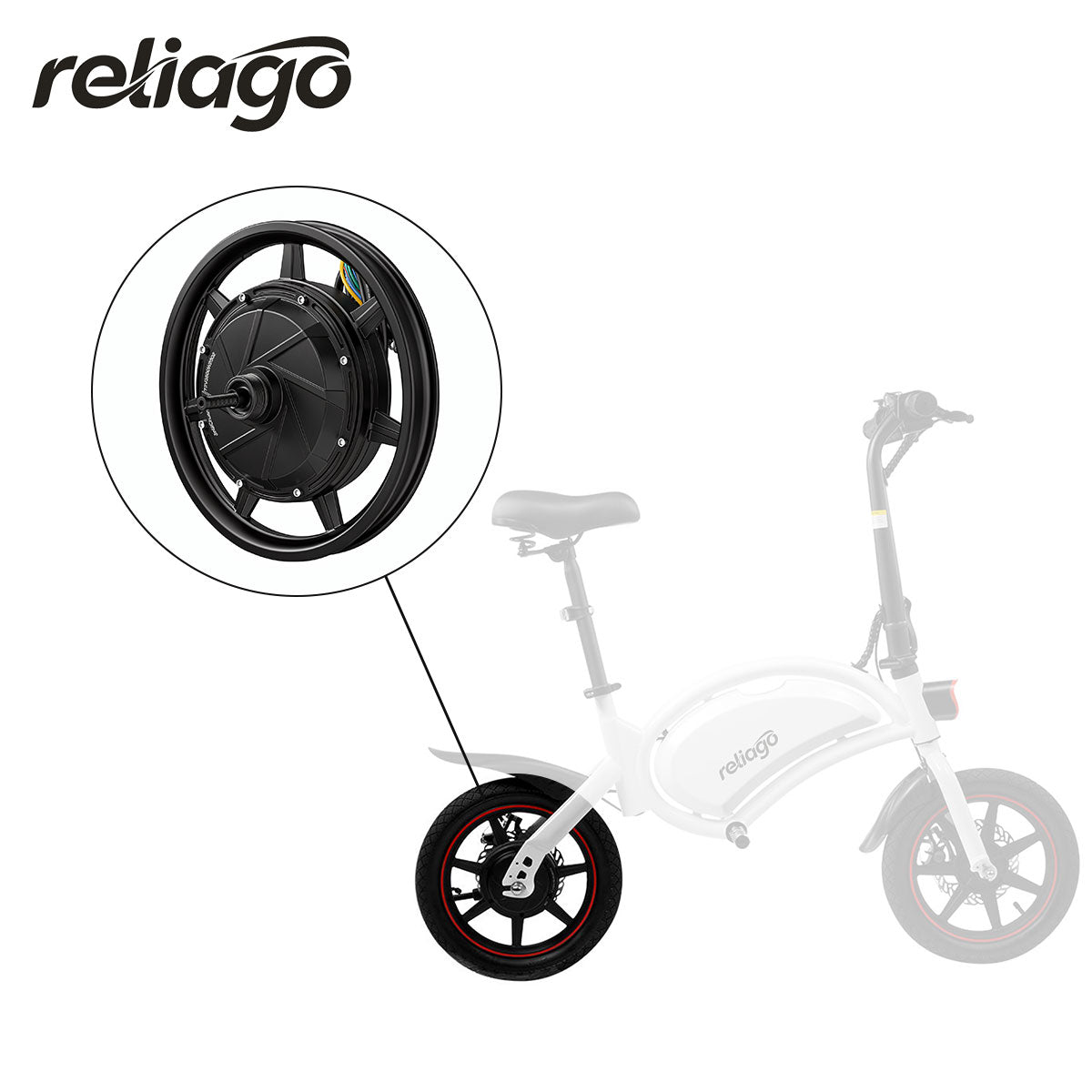

The primary application is replacing a compatible rear hub motor on a DYU D3F e-bike.
Suitable for repair shops and technicians replacing damaged or worn rear hub motors.
Useful for restoring compatible e-bikes where the original rear motor requires replacement.
Can be kept as a replacement motor for future maintenance requirements.
Q1: What e-bike is this motor designed for?
This motor is specified for the DYU D3F electric bike.
Q2: What is the motor voltage?
The rated voltage is 36V.
Q3: What is the motor power?
The rated power is 350W.
Q4: Is this a brushless motor?
Yes. It is a brushless rear hub motor.
Q5: Does the motor have a Hall sensor?
Yes. The motor includes a Hall sensor with an SM-5Y connector.
1 x E-Bike Brushless Hub Motor
